Home / Product / Brass Bibcock / Customized 3/8inch Brass Bibcock With Iso 228 Thread Corrosion Resistance 50B
  • detail of Customized 3/8inch Brass Bibcock With Iso 228 Thread Corrosion Resistance 50B
  • detail of Customized 3/8inch Brass Bibcock With Iso 228 Thread Corrosion Resistance 50B

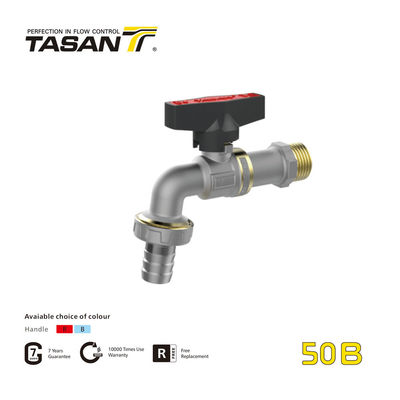

Customized 3/8inch Brass Bibcock With Iso 228 Thread Corrosion Resistance 50B

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 50B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: 50B Brass Hose Bibcock Material: Brass
Size: 3/8''~1'' Handle Material: Aluminum
Working Temperature Min./Max.: -10 ℃ To +120 ℃ (from 14℉ To 248℉) Pressure Rating:: PN16/232psi -- 3/8"-1" (DN10-25mm)
Thread: ISO 228「equivalent To DIN EN 10226-1 And 8S21」 Power: Manual
High Light: 3/8inch Brass Bibcock, Brass Bibcock Iso 228 Thread, brass nozzle cock Iso 228 Thread

det2

Product Description

50B  Brass Hose Bibcock
50B Brass Hose Bibcock is the excellent quality design.

● Pressure rating:
PN16/232psi -- 3/8"-1" (DN10-25mm)
● Working temperature Min./Max.:
-10 ℃ To +120 ℃ (from 14℉ To 248℉)
● Descriptions:
Forged brass body in nickel-plated
TASAN Blowout-proof stem - Minimal 30000 times of useDesigned with ad」ustable gland and
EPDM 0-ring(1/2"-1 ")
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」

det3

Customized 3/8inch Brass Bibcock With Iso 228 Thread Corrosion Resistance 50B 0
Structure Charts
Part Code Size A/mm B/B1/mm C/C1/mm
50BNS302 3/8’’ 86 94 52
50BNS303 1/2’’ 87 94 52
50BNS304 3/4’’ 100 107 56
50BNS305 1’’ 120 127 62

1 Body High-density Forged Brass
2 Seats Pure PTFE (Polytetrafluoroethylene)
3 Ball Forged Brass
4 Tail Forged Brass
5 Stem Machined Brass Rod
6 O-ring EPDM 70 Shore
7 Gland Packing Pure PTFE (Polytetrafluoroethylene)
8 Gland Machined Brass Rod
9 Lever Handle Z.P. Steel Varnished, PVC Sleeve
10 Handle Washer Nickel-plated Steel
11 Handle Screw Nickel-plated Steel
12 T Handle Aluminum
13 Name Plate POM
14 Seal NBR 70 Shore
15 Hose Connector Machined Brass Rod
16 Filter POM
17 Cap Forged Brass
The thread, color of handle, materials, etc. can be customized.
