Home / Product / Brass Bibcock / Nickel Plated Forged 1inch Brass Bibcock With Lockable Handle 50L
  • detail of Nickel Plated Forged 1inch Brass Bibcock With Lockable Handle 50L
  • detail of Nickel Plated Forged 1inch Brass Bibcock With Lockable Handle 50L

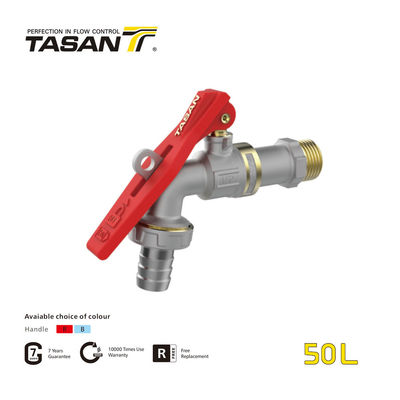

Nickel Plated Forged 1inch Brass Bibcock With Lockable Handle 50L

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 50L
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: 50B Brass Hose Bibcock With Lockable Handle Material: Brass
Size: 1/2''~1'' Handle Material: Aluminum
Working Temperature Min./Max.: –20°C ~100°C (-4°F~212°F) Pressure Rating:: PN16/232psi -- 1/2"-1" (DN15-25mm)
Thread: ISO 228「equivalent To DIN EN 10226-1 And 8S21」 Power: Manual
High Light: 1inch Brass Bibcock, Lockable Handle Brass Bibcock, Lockable Handle brass bib cock

det2

Product Description

50L  Brass Hose Bibcock With Lockable Handle
50L Brass Hose Bibcock is the excellent quality design.

● Pressure rating:
PN16/232psi -- 1/2"-1" (DN15-25mm)

● Working temperature Min./Max.:
–20°C ~100°C (-4°F~212°F)

● Descriptions:
Forged brass body in nickel-plated
TASAN Blowout-proof stem - Minimal 30000 times of useDesigned with ad」ustable gland and
EPDM 0-ring(1/2"-1 ")
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」

det3

Nickel Plated Forged 1inch Brass Bibcock With Lockable Handle 50L 0

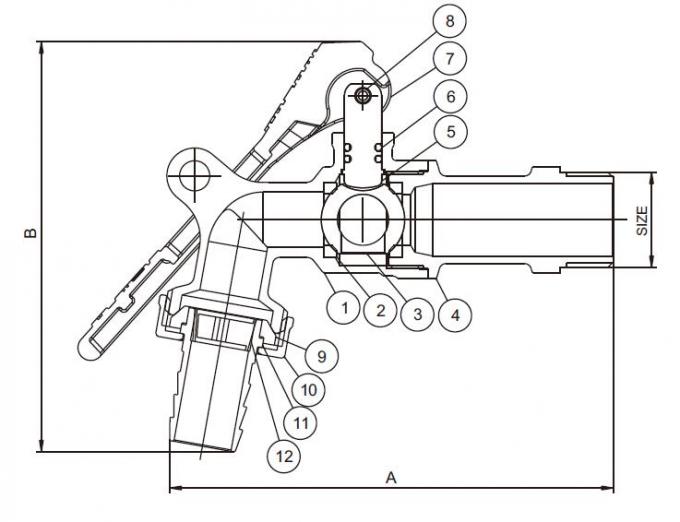

Structure Charts
Part Code Size A/mm B/B1/mm C/C1/mm
50LS303 1/2’’ 90 90 -
50LS304 3/4’’ 107 104 -
50LS305 1’’ 127 119 -

1 Body High-density Forged Brass
2 Seats Pure PTFE (Polytetrafluoroethylene)
3 Ball Machined Brass Rod
4 Tail Forged Brass
5 Stem Machined Brass Rod
6 O-ring NBR 70 Shore
7 Lever Handle Aluminum
8 Pin H62 Brass
9 Seal NBR 70 Shore
10 Hose Connector Machined Brass Rod
11 Filter POM
12 Cap Forged Brass
The thread, color of handle, materials, etc. can be customized.
