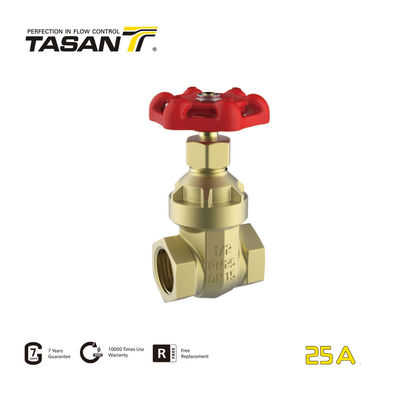

Female X Female 1/2 Inch-4 Inch Brass Gate Valve PN25 Gate Valve 25A

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 25A

Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Gate Valve PN25 Material: Brass
Port Size: 1/2"-4" Connection Type: Female X Female
Working Temperature Min./Max.: -20°(-150°((-4°F-302° F) In Absence Of Steam Pressure Rating:: PN25/363psi -- 1/2"~4" (DN15~100mm)
Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」 Power: Manual
High Light: Brass Gate Valve PN25, 4 inch Brass Gate Valve PN25, Female PN25 Gate Valve

det2

Product Description
25A Brass Gate Valve PN25

25A series gate valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks, oil pipelines.used for non aggressive fluid only.

● Pressure rating:
PN25/363psi -- 1/2"~4" (DN15~100mm)

● Working temperature Min./Max.:
-20°(-150°((-4°F-302° F) in absence of steam

● Descriptions:
Forged brass body
PN25/363psi -- 1/2"~4" (DN15~100mm)
-20°(-150°((-4°F-302° F) in absence of steam
ISO 228 「equivalent to DIN EN 10226-1 and BS21」

det3

Female X Female 1/2 Inch-4 Inch Brass Gate Valve PN25 Gate Valve 25A 0
Structure Charts
Part Code Size A/mm B/mm C/mm
25AS301 1/4’’ 37 72 50
25AS302 3/8’’ 37 72 50
25AS303 1/2’’ 40 72 50
25AS304 3/4’’ 45 82 55
25AS305 1’’ 51 95 60
25AS306 11/4’’ 57 111 70
25AS307 11/2’’ 60 110 80
25AS308 2’’ 60 135 90
25AS309 21/2’’ 78 172 100
25AS310 3’’ 90 199 110
25AS311 4’’ 102 232 130

1 Body High-density Forged Brass
2 Wedge Disc High-density Forged Brass
3 Stem Forged Brass
4 Washer PTFE
5 Bonnet Forged Brass
6 Lock Nut Machined Brass Rod
7 Packing Nut Machined Brass Rod
8 Gland Packing PTFE
9 Handwheel Aluminum
10 Name Plate Aluminum
11 Wheel Nut Stainless Steel
The thread, color of handle, materials, etc. can be customized.
