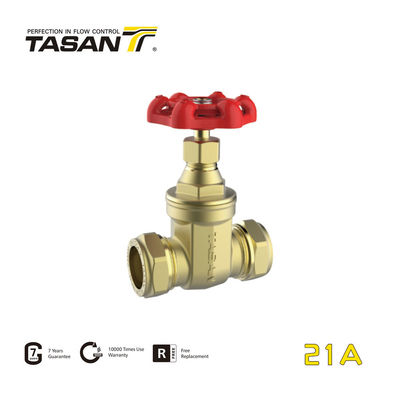

Oil Pipelines PN20 3 Inch Brass Gate Valve With End Compression 21A

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 21A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Brass Gate Valve With Compression End PN20 Material: Brass
Port Size: 1/2"-4" Connection Type: Female X Female
Working Temperature Min./Max.: –20°C ~120°C (-4°F~248°F) In Absence Of Steam Pressure Rating:: PN20/292psi -- 1/2"~4" (DN15~100mm)
Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」 Power: Manual
High Light: PN20 3 Inch Brass Gate Valve, oil pipelines Brass Gate Valve, PN20 compression gate valve

det2

Product Description
21A Brass Brass Gate Valve With Compression End PN20
21A series gate valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks, oil pipelines.used for non aggressive fluid only.

● Pressure rating:
PN20/292psi -- 1/2"~4" (DN15~100mm)

● Working temperature Min./Max.:
–20°C ~120°C (-4°F~248°F) in absence of steam

● Descriptions:
Forged brass body
PN25/363psi -- 1/2"~4" (DN15~100mm)
-20°(-150°((-4°F-302° F) in absence of steam
ISO 228 「equivalent to DIN EN 10226-1 and BS21」

det3

Oil Pipelines PN20 3 Inch Brass Gate Valve With End Compression 21A 0

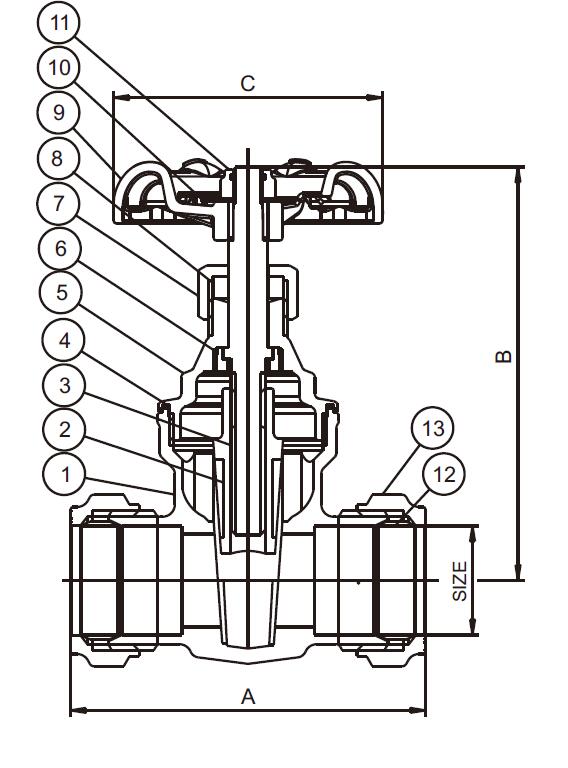

Structure Charts
Part Code Size A/mm B/mm C/mm
21AS301 1/4’’ 33 65 48
21AS302 3/8’’ 33 65 48
21AS303 1/2’’ 33 65 48
21AS304 3/4’’ 36 68 55
21AS305 1’’ 41 85 60
21AS306 11/4’’ 45 93 77
21AS307 11/2’’ 49 106 80
21AS308 2’’ 56 124 90
21AS309 21/2’’ 64 153 99
21AS310 3’’ 75 169 108
21AS311 4’’ 83 199 129

1 Body High-density Forged Brass
2 Wedge Disc High-density Forged Brass
3 Stem Forged Brass
4 Washer PTFE
5 Bonnet Forged Brass
6 Lock Nut Machined Brass Rod
7 Packing Nut Machined Brass Rod
8 Gland Packing PTFE
9 Handwheel Aluminum
10 Name Plate Aluminum
11 Wheel Nut Stainless Steel
12 Compression Ring H62 Brass
13 Compression Nut Forged Brass
The thread, color of handle, materials, etc. can be customized.
