16C Brass Gate Valve PN16
16C series gate valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks, oil pipelines.used for non aggressive fluid only.
● Pressure rating:
PN16/232psi -- 1/2"~4" (DN15~100mm)
● Working temperature Min./Max.:
–20°C ~100°C (-4°F~212°F) in absence of steam
● Descriptions:
Forged brass body
PN16/232psi -- 1/2"~4" (DN15~100mm)
–20°C ~100°C (-4°F~212°F) in absence of steam
ISO 228 「equivalent to DIN EN 10226-1 and BS21」

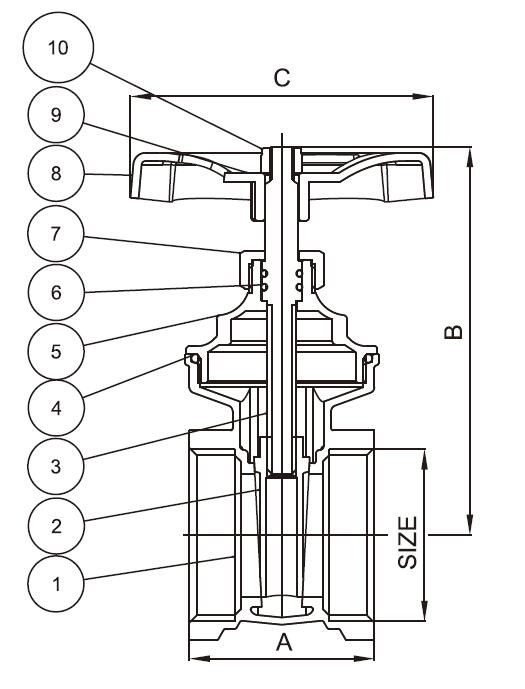

Structure Charts
Part Code |
Size |
A/mm |
B/mm |
C/mm |
16CS301 |
1/4’’ |
33 |
65 |
48 |
16CS302 |
3/8’’ |
33 |
65 |
48 |
16CS303 |
1/2’’ |
33 |
65 |
48 |
16CS304 |
3/4’’ |
36 |
68 |
55 |
16CS305 |
1’’ |
41 |
85 |
60 |
16CS306 |
11/4’’ |
45 |
93 |
77 |
16CS307 |
11/2’’ |
49 |
106 |
80 |
16CS308 |
2’’ |
56 |
124 |
90 |
16CS309 |
21/2’’ |
64 |
153 |
99 |
16CS310 |
3’’ |
75 |
169 |
108 |
16CS311 |
4’’ |
83 |
199 |
129 |
1 |
Body |
High-density Forged Brass |
2 |
Wedge Disc |
High-density Forged Brass |
3 |
Stem |
Machined Brass Rod |
4 |
Washer |
PTFE |
5 |
Bonnet |
Forged Brass |
6 |
O-ring |
NBR 70 Shore |
7 |
Packing Nut |
Machined Brass Rod |
8 |
Handwheel |
Pressed Steel |
9 |
Name Plate |
Aluminum |
10 |
Wheel Nut |
Stainless Steel |
The thread, color of handle, materials, etc. can be customized.
